Explore the Power of Scaffold Designs in Real-Time.

Share designs instantly with your team and clients. Use live mark-ups, task assignments, and 3D walkthroughs to ensure smooth communication, accuracy and efficiency - from the office to the job site.

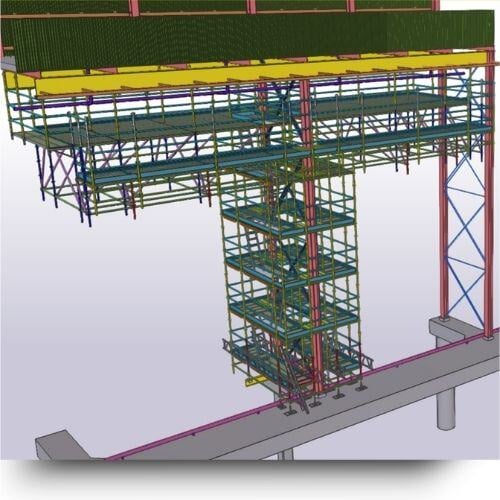

Suspended Ship Loader Maintenance Platform

Access to the underside of the ship loader boom was required to replace both structural steel members & change wire ropes.

VIEW LIVE MODEL

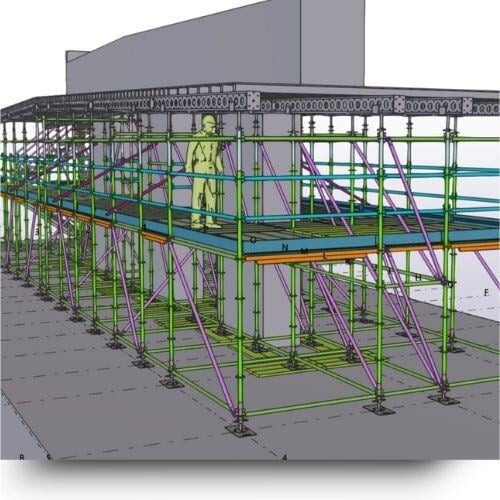

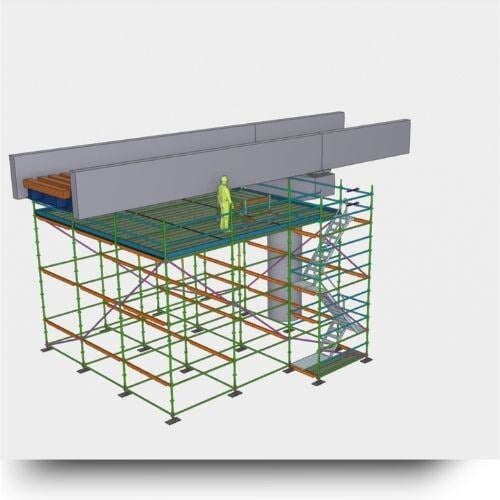

Heavy Duty Falsework Deck for Pier & Headstock Construction

The falsework was required to hold 150 tonnes of steel & concrete during construction of piers & headstocks for a new overpass.

VIEW LIVE MODEL

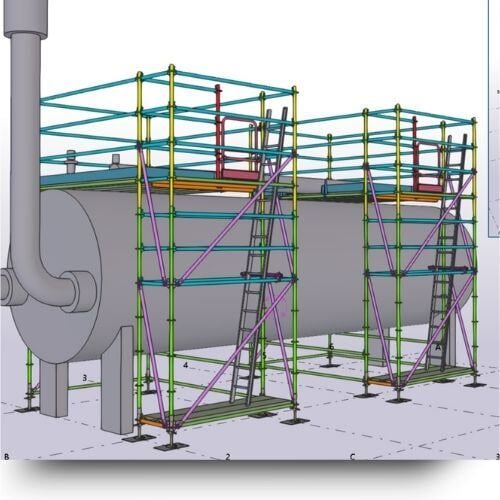

Access Over High-Pressure Tanks for Valve Replacement

This scaffolding was designed to have zero contact with the vessel - spanning over the top to provide access & replace valves.

VIEW LIVE MODEL

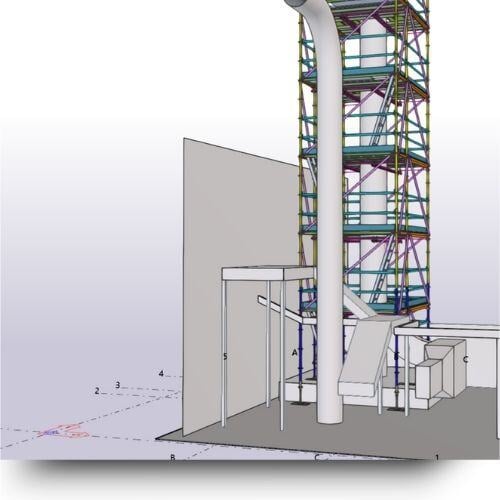

Exhaust Stack Blast & Paint

This project required a fully contained work area to efficiently blast and paint this exhaust stack.

VIEW LIVE MODEL

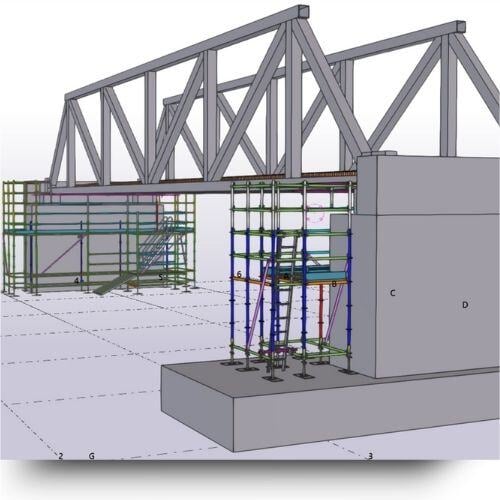

Rail Bridge Abutment Access

Access was required to jack the bridge from the abutments and replace the bridge bearings.

VIEW LIVE MODEL

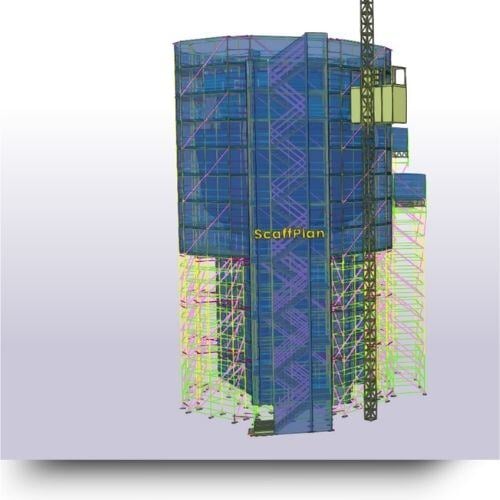

Air Traffic Control Tower

The unique shape & size provided challenges that could only be overcome by accurate design.

VIEW LIVE MODEL

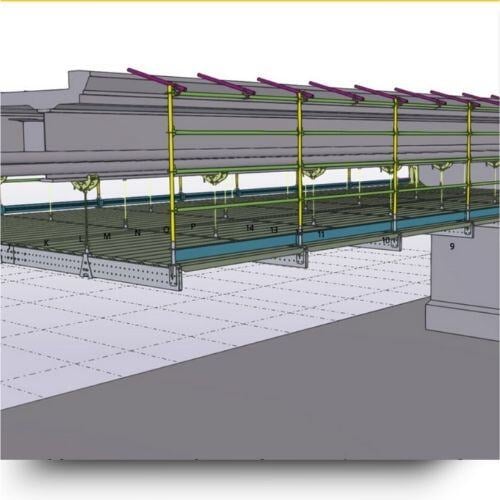

Suspended Flex Beam Bridge for Concrete Repairs

Suspended and encapsulated access platform for blast and paint of structural steel.

VIEW LIVE MODEL

Heritage Building Concrete Façade Repairs

A complex temporary works design suspended over an awning, in a public mall.

VIEW LIVE MODEL

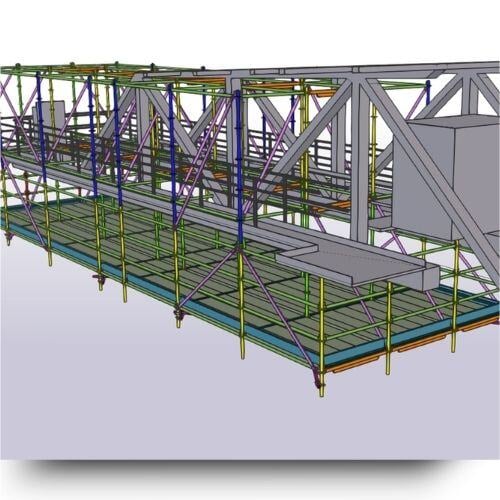

Structural Bridge Strengthening Platform

Access was required to inspect and replace sleepers and structural steel members.

VIEW LIVE MODEL

Electrical Terminal Connection & Containment

A contained access area was required for the installation of High Voltage cables at an electrical substation.

VIEW LIVE MODEL

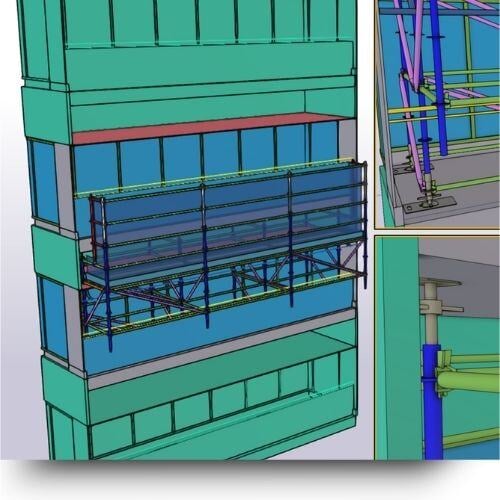

Cantilevered, High Rise Building Access

External access on a high rise building was designed to be suspended to avoid scaffolding from the ground up to level 32.

VIEW LIVE MODEL

Access for the Underside of Conveyor Gallery

Cantilevered and suspended scaffolding access to provide structural steel and concrete soffit repairs.

VIEW LIVE MODEL

Explore World-Class Scaffolding Drawings

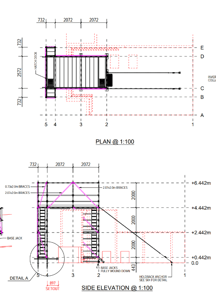

ScaffPlan Drawings

Check out an example of best-practise drawings. This output is included in every ScaffPlan subscription.

> Project Cover Page
> Isometric Views
> General Arrangements
> Set Out Plan

Let's Get Started!
